Item specifics
Private Mold:
Yes
Place of Origin:
Guangdong, China
Brand Name:
TL MEDIA
Model Number:
NDI30
Video Input:
1x 12G SDI
Video Output:
1 x 12G SDI
NDI Code Capacity:
1X NDI Encoding, 1X NDI Decoding
Product Description

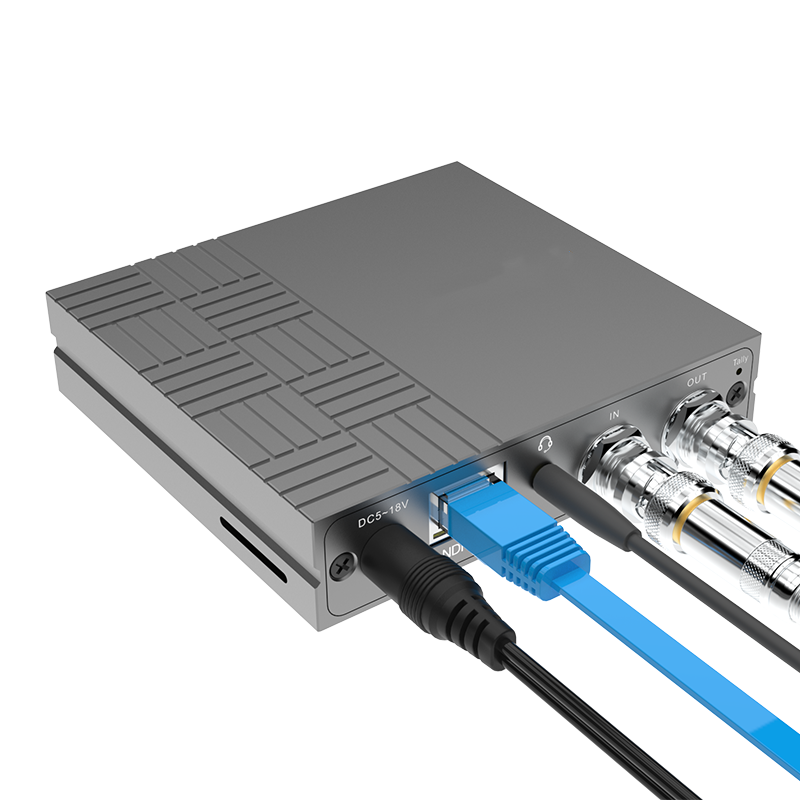

12G SDI FULL NDI Encoder/Decoder
Model#NDI30
Brief Introduction
NDI® (Network Device Interface) is an IP-based video transmission technology developed by
NewTek (Vizrt). NDI30 12G SDI FULL NDI® encoder/decoder，end-to-end latency is ultra-low (less than100ms), support for 12G-SDI video and NDI® bi-directional conversion. One unit, dual use.
It is a compact and small unit, either to a pocket or mounted on the camera equipped with standard 1/4" screw. It not only converts 12G-SDI Video to NDI ® (Encoding) but also converts NDI to 12G-SDI (Decoding). It featured with big size Tally light, powered via PoE, DC or D-Tap (camera). What’s more, it has a 3.5 mm audio headset interface, and support audio intercom (customization)
Application
●IP-based post production
●Video output to screen
●Low latency transmission
●Video conferences
Advantages
NDI encoding + decoding, one unit, dual use
●Plug in and play, 12G-SDI to NDI®, or NDI® to the screen;
● Equipped with 12G-SDI input and output dual interfaces, which can be looped out on the monitor during streaming, or output 12G-SDI signal during decoding;
● Preset 10 outputs, including 9 decoding addresses and 1 blank preset box (customizable background color), and USB extended keyboard for switching. High quality and low latency transmission
●Support single-link 12G-SDI video input and output both for encoding and decoding, backward compatible with SD/HD/VESA resolution and other special resolutions;
●Ultra-low latency, end-to-end latency is less than 100ms;
●FULL NDI high-quality encoding ensures excellent image quality, and lossless audio encoding ensures high-fidelity sound quality;
●Accurate clock and intelligent algorithm ensured video frame, image and audio synchronization.
More advanced functions at your palm
●Built-in large-size Tally light to indicate PGM (program output) or PVW (pre-monitor output) status;
●Support for PoE (Power over Ethernet) and 5-18V DC input powered by USB, mobile power or camera battery;
●Equipped with 3.5mm headset interface, support voice intercom (customization).
●PTZ control with protocols of Visca/Visca over IP/Pelco (special PTZ control protocols can be customized);
●Integrated with IMS software to realize functions such as remote management and control, NDI stream management and distribution, centralized call management, and large-scale program production management;
●SDK/API provided for secondary development.
NDI® (Network Device Interface) is an IP-based video transmission technology developed by
NewTek (Vizrt). NDI30 12G SDI FULL NDI® encoder/decoder，end-to-end latency is ultra-low (less than100ms), support for 12G-SDI video and NDI® bi-directional conversion. One unit, dual use.
It is a compact and small unit, either to a pocket or mounted on the camera equipped with standard 1/4" screw. It not only converts 12G-SDI Video to NDI ® (Encoding) but also converts NDI to 12G-SDI (Decoding). It featured with big size Tally light, powered via PoE, DC or D-Tap (camera). What’s more, it has a 3.5 mm audio headset interface, and support audio intercom (customization)
Application
●IP-based post production
●Video output to screen
●Low latency transmission
●Video conferences
Advantages
NDI encoding + decoding, one unit, dual use
●Plug in and play, 12G-SDI to NDI®, or NDI® to the screen;
● Equipped with 12G-SDI input and output dual interfaces, which can be looped out on the monitor during streaming, or output 12G-SDI signal during decoding;
● Preset 10 outputs, including 9 decoding addresses and 1 blank preset box (customizable background color), and USB extended keyboard for switching. High quality and low latency transmission
●Support single-link 12G-SDI video input and output both for encoding and decoding, backward compatible with SD/HD/VESA resolution and other special resolutions;
●Ultra-low latency, end-to-end latency is less than 100ms;
●FULL NDI high-quality encoding ensures excellent image quality, and lossless audio encoding ensures high-fidelity sound quality;
●Accurate clock and intelligent algorithm ensured video frame, image and audio synchronization.
More advanced functions at your palm
●Built-in large-size Tally light to indicate PGM (program output) or PVW (pre-monitor output) status;
●Support for PoE (Power over Ethernet) and 5-18V DC input powered by USB, mobile power or camera battery;
●Equipped with 3.5mm headset interface, support voice intercom (customization).
●PTZ control with protocols of Visca/Visca over IP/Pelco (special PTZ control protocols can be customized);
●Integrated with IMS software to realize functions such as remote management and control, NDI stream management and distribution, centralized call management, and large-scale program production management;
●SDK/API provided for secondary development.
