Item specifics
Certification:
ce
Gender:
Unisex
Type:
Car
Power:
Battery
Material:
high strength CNC 6061-T6 aluminum, steel gear.
Plastic Type:
CNC 6061-T6
Radio Control Style:
RC Model
Place of Origin:
Guangdong, China
Brand Name:
TL MEDIA
Model Number:
RCC-VR4M
Car Max Load:
30KGS
VR Stabilizer Max load:
11KG
Speed::
<10 km / h
Motor:
800KV brushless motor
Max Height:
about 165cm
Radio Control Type:
2.4G
Product Description

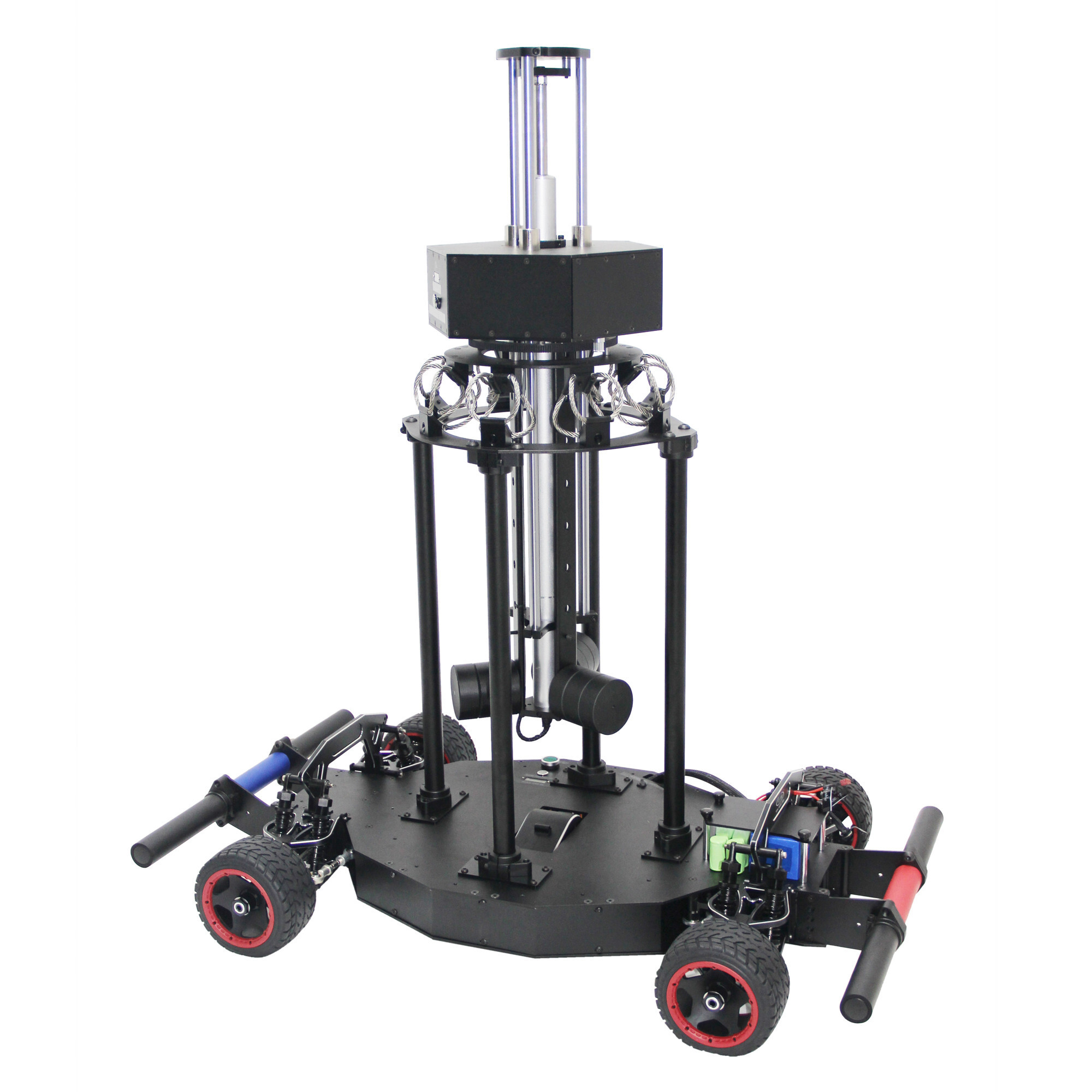

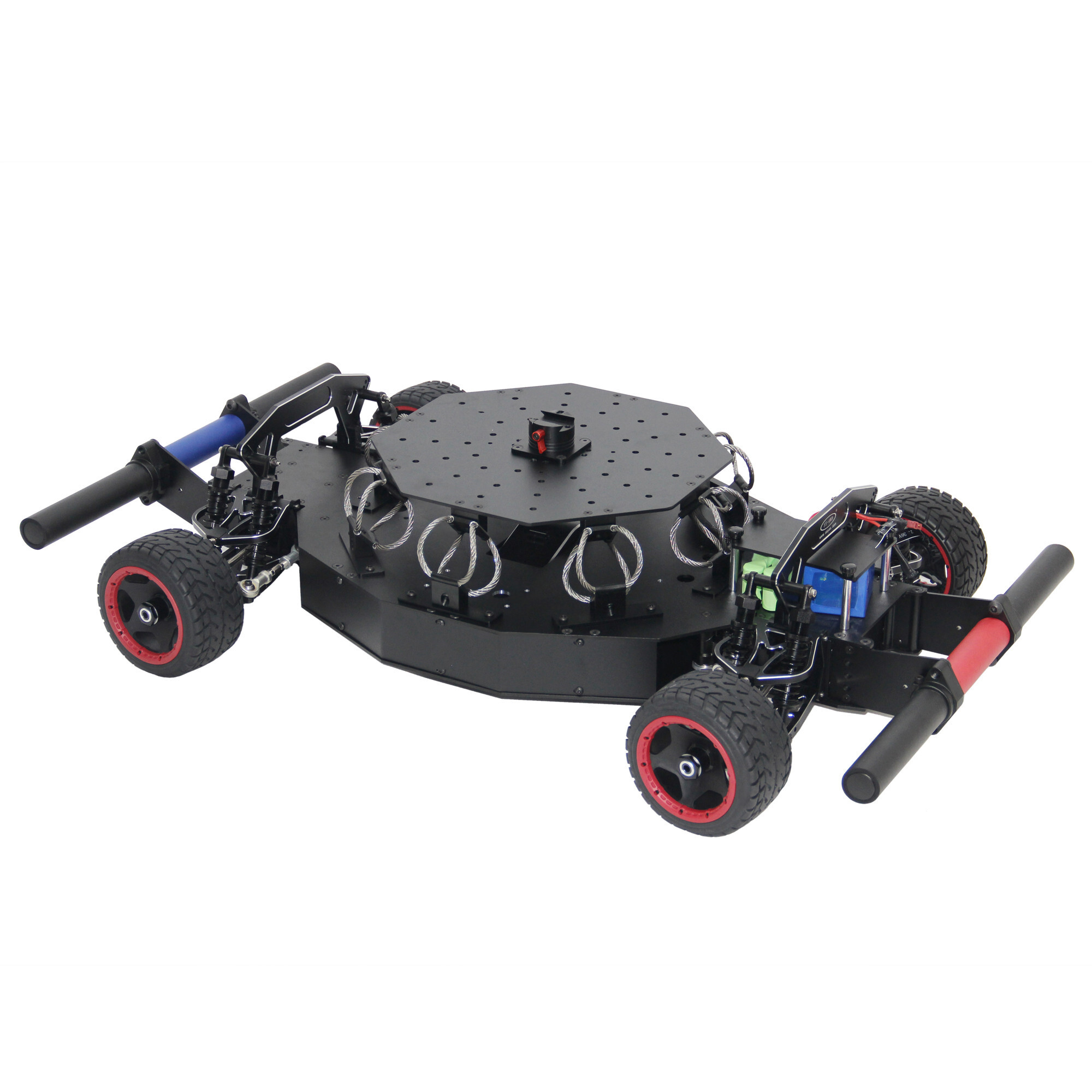

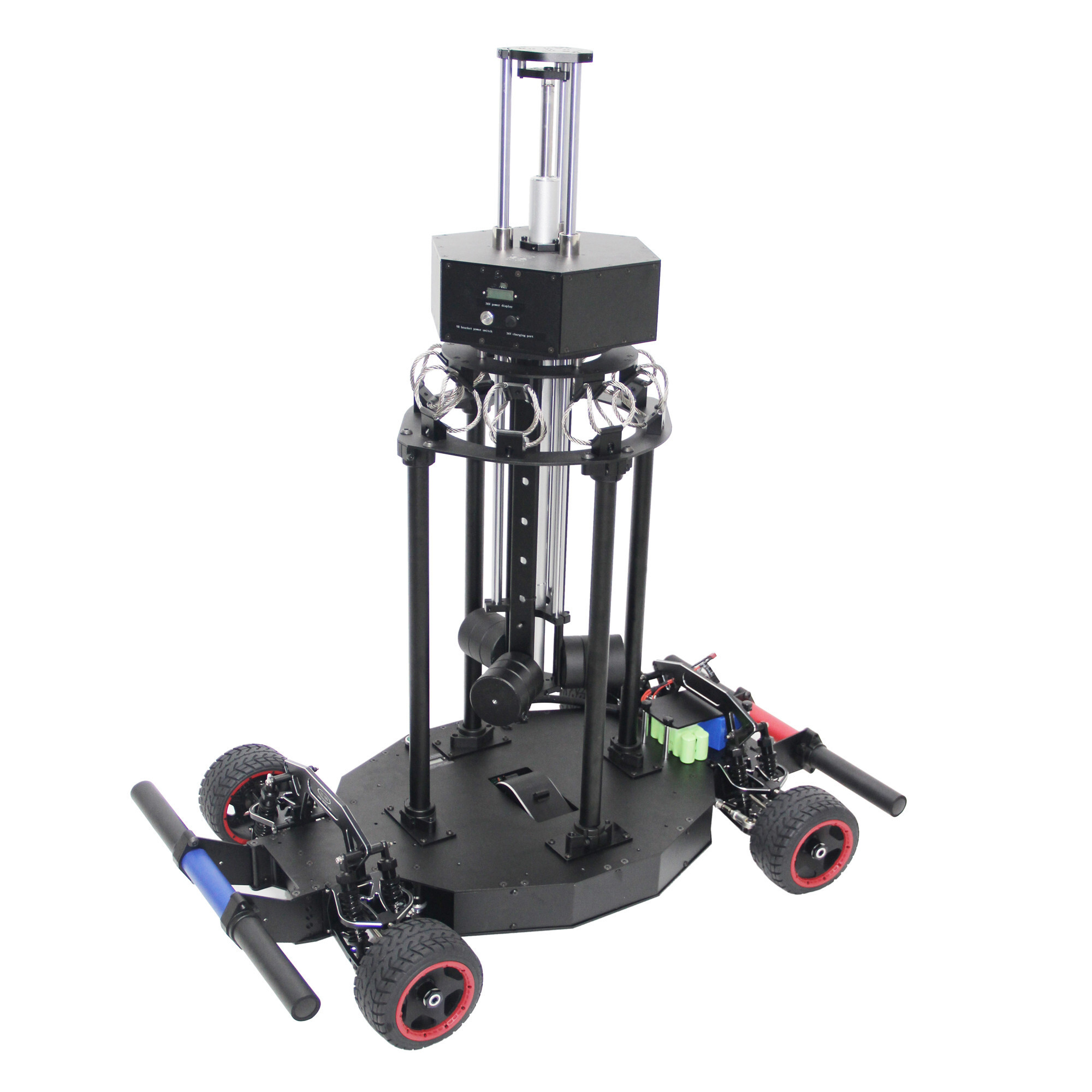

4 Wheel Multifunctional RC VR Camera Car+ Auto lifting & rotating Stabilizer for RONIN 2
Model: RCC-VR4M
Features
This multifunctional 4 Wheel RC VR Camera Car with Auto lifting & rotating Stabilizer is used for 360 VR video shooting and also
suitable for low-angle motion shooting with three-axis stabilizers and professional cameras.
Functions:
* Full metal material: high strength CNC 6061-T6 aluminum, steel gear.
* 4WD Version, four-wheel steering with easy handling and running smoothly, steering is very flexible, high level metal frame.
* Maximum speed: 10km / h
* Max load: 11kg. it is not problem to install JAUNT ONE 11kg or Nokia OZO.
For Cine Camera. Two Cine Camera Position. Dual shock absorption platform for two camera positions, It captures two different
angles of shocking lens. sports and shooting, compatible with double DJI, Talta, Zhiyun, Feiyu, Freefly and other brands of
three-axis stabilizer and professional dual Cine Camera.
Esp. suitable for DJI RONIN2 and professional Cine Camera. It is suitable for film-makers.
* Using humane and easy operate by remote control: 2.4G 12-Ch LCD Radio control with the maximum distance of 3.5 km.
* Optional video wireless transmission system. With 5.8G digital signal and 1080 high-definition video, the maximum video
transmission distance of 5 km.
* Double Damping system:
-12pc Hydraulic shock absorbers independent system parts of the car are not deformed steel wire, shock resistance vibration
absorption equilibrium.
– Damping system: front and rear two sets. the middle is steel damping to ensure picture stability when starting and stopping
time. Independent system parts are not deformed steel wire, shock resistance vibration absorption equilibrium.
* Mechanical counterweight for the VR stabilizer: to balance the VR Camera and make it is not wobble.
* The VR car professional features:
– fixed speed, constant stable speed running and the speed are adjustable.
– Dual mode: automatic driving and remote control.
– Straight line running, start and stop running smoothly.
– Ultra low speed running and delayed shooting.
– No noise, the car is running for the silence level.
– The car max load: about 30kg.
* The auto lifting and rotating VR stabilizer features:
– Auto lifting, lifting speed are adjustable.
– 360 degree rotation, rotating speed are adjustable.
– Comes with stabilization function, no jitter, anti-high frequency jitter;
– The max height is about 165cm and the whole height will reach at 180mm with car together.
– VR stabilizer max load: about 11kg.
– Standard port: suitable for different brand VR panoramic Camera, such as Jaunt one, Nokia OZO, Insta360 Pro, Gopro, Kandao
Obsidia, Z Cam S1 and so on.
* Belt drive without noise.

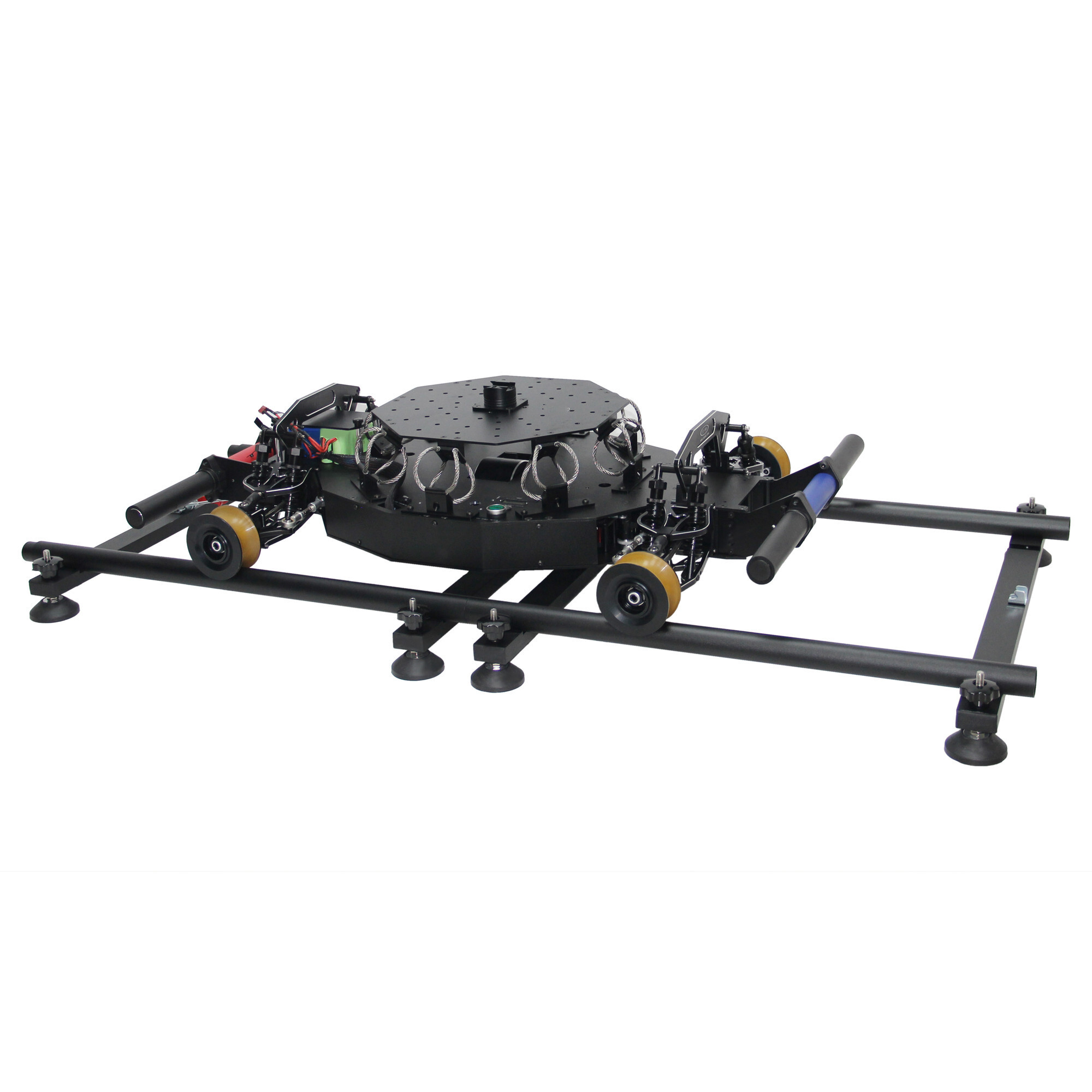

* Optional track and track wheels.
Technical Parameters
Car size: 1080*620*310mm
VR bracket height: from 1120 to 1600mm.
Car Net Weight: 28kg.
VR bracket Net Weight: 20.40kg.
Belt drive without noise.
Brushless Motor: 200W high power.
Car Battery: 36V, 2.6Ah 93.6Wh capacity lithium battery, ensure 4 hours of endurance time.
VR bracket Battery: 36V, 2.6Ah 93.6Wh capacity lithium battery, ensure 4 hours of endurance time.
Steering system: 2*55KG Servo, 2*6V 4600mA battery to supply power.
Package
Wooden Box No.1：G.W: 56kg. Size：114*79*31cm,
Wooden Box No.2：G.W: 43kg. Size：109*48*42cm
Including
Car Frame. 1 set
VR bracket (Auto lifting & rotating stabilizer). 1 set
12 channel Remote control. 1pc
12 channel receiver. 2pc
Charger for the batteries . 3pc
Fixed adapter screw for the panoramic camera. 1pc
Spare screws for car. numbers
Multi – function wrench. 1pc
Hexagon screwdriver. 1pc
Tire sleeve. 1pc
Specification
Car Size | 1080*620*310mm |
VR bracket height | from 1120 to 1600mm |
Brushless Motor | 200W high power |
Car Battery | 36V, 2.6Ah 93.6Wh capacity lithium battery, ensure 4 hours of endurance time. |
VR bracket Battery | 36V, 2.6Ah 93.6Wh capacity lithium battery, ensure 4 hours of endurance time. |
Steering System | 2*55KG Servo, 2*6V 4600mA battery to supply power. |
