Item specifics
Place of Origin:
Guangdong, China
Brand Name:
TL MEDIA
Model Number:
LCD-TS65
Screen Size:
65inch
Display type:
LCD
Resolution:
1920 x 1080pixels
Brightness:
500cd/m²
Contrast ratio:
1200:1
Pixel pitch:
0.63mm x 0.63mm
Product Description

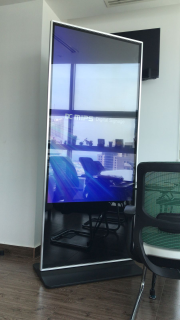

65inch Floor Stand LCD Touch Screen
Specification
Panel LCD size 65" (A gauge)
Resolution 1920 x 1080pixels
Brightness 500cd/m²(typ.)
Contrast ratio 1200:1(typ.)
Pixel pitch 0.63mm x 0.63mm
Frame rate 120Hz
Viewing angle 178 degrees (H)/178 degrees (V)
Life 60,000hrs(min.)
Color saturation 68%
Viewable area 1430.48 × 808.6 mm (H×V)
Color 16.7M
computer system properties
CPU Processor Intel 4005U i7
Working frequency 2.8GHZ
Graphics chip Built-in Intel HD Graphics4400
Memory cache capacity (RAM) DDR3: 4G
Hard disk solid state 120G
System version Windows 10
Power supply voltage Rated 100-240V~, maximum 90-264V~50/60Hz
Maximum power ≤230W
Standby power <0.5W
Internal speaker 2 x 10W(max)
Power (AC) input 100-240V
Environment Working temperature 0℃～40℃
Storage temperature -20℃～60℃
Working humidity 10%～90% non-condensing
Input and output interface LAN 1
MIC-IN 1
HDMI 1
LINE-OUT 1
DC 1
USB 3.0 2
USB 2.0 2
VGA 1
Net weight 66±1kg
Gross weight 75±1kg
Bare metal dimensions are subject to actual
Packaging size is subject to actual
Shell material Aluminum alloy face frame, sheet metal back cover, tempered glass
Shell color Silver border black back plate
VESA hole 4-M6 screw hole 400 x 400 mm
Language OSD Chinese, English, etc.
Parameters:
Capacitive touch sensing technology, can support 40 points
Glass 4MM, physically tempered Mohs level 7 explosion-proof
Glass transmittance >92%
Outer frame material Aluminum alloy frame, PCBA
Response speed Single point mode: click for 13ms, continuous 3ms Multi-point mode: click for 13ms, continuous 5-10ms, touch two
points at the same time: click for 10ms
Touch accuracy ≤2mm
Input method Opaque objects (such as fingers, pens, etc.)
Theoretical number of clicks More than 60 million times at the same location
Minimum touch object ≥ 5MM
Light resistance Incandescent lamp (220V, 100W), the vertical distance is more than 350mm, and the illuminance of sunlight can
reach 90000Lux
Power supply mode USB (USB power supply)
Power supply voltage DC 5.0±5%
Power cord 1 (1.5M)
Manual 1
Warranty Card 1
Certificate 1
WIFI Antenna 1
Specification
Panel LCD size 65" (A gauge)
Resolution 1920 x 1080pixels
Brightness 500cd/m²(typ.)
Contrast ratio 1200:1(typ.)
Pixel pitch 0.63mm x 0.63mm
Frame rate 120Hz
Viewing angle 178 degrees (H)/178 degrees (V)
Life 60,000hrs(min.)
Color saturation 68%
Viewable area 1430.48 × 808.6 mm (H×V)
Color 16.7M
computer system properties
CPU Processor Intel 4005U i7
Working frequency 2.8GHZ
Graphics chip Built-in Intel HD Graphics4400
Memory cache capacity (RAM) DDR3: 4G
Hard disk solid state 120G
System version Windows 10
Power supply voltage Rated 100-240V~, maximum 90-264V~50/60Hz
Maximum power ≤230W
Standby power <0.5W
Internal speaker 2 x 10W(max)
Power (AC) input 100-240V
Environment Working temperature 0℃～40℃
Storage temperature -20℃～60℃
Working humidity 10%～90% non-condensing
Input and output interface LAN 1
MIC-IN 1
HDMI 1
LINE-OUT 1
DC 1
USB 3.0 2
USB 2.0 2
VGA 1
Net weight 66±1kg
Gross weight 75±1kg
Bare metal dimensions are subject to actual
Packaging size is subject to actual
Shell material Aluminum alloy face frame, sheet metal back cover, tempered glass
Shell color Silver border black back plate
VESA hole 4-M6 screw hole 400 x 400 mm
Language OSD Chinese, English, etc.
Parameters:
Capacitive touch sensing technology, can support 40 points
Glass 4MM, physically tempered Mohs level 7 explosion-proof
Glass transmittance >92%
Outer frame material Aluminum alloy frame, PCBA
Response speed Single point mode: click for 13ms, continuous 3ms Multi-point mode: click for 13ms, continuous 5-10ms, touch two
points at the same time: click for 10ms
Touch accuracy ≤2mm
Input method Opaque objects (such as fingers, pens, etc.)
Theoretical number of clicks More than 60 million times at the same location
Minimum touch object ≥ 5MM
Light resistance Incandescent lamp (220V, 100W), the vertical distance is more than 350mm, and the illuminance of sunlight can
reach 90000Lux
Power supply mode USB (USB power supply)
Power supply voltage DC 5.0±5%
Power cord 1 (1.5M)
Manual 1
Warranty Card 1
Certificate 1
WIFI Antenna 1
Specification
