Item specifics
Brand Name:
TL Media
Model Number:
FT20
Place of Origin:
Guangdong, China
Model:
FT20
Warranty:
12 Months
Color:
Silver
Distance:
20KM
Certification:
ce, RoHS
Product Description

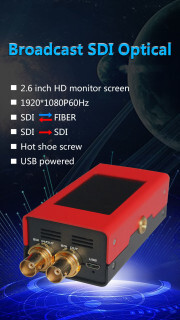

Professional Broadcast 2.6inch LCD Screen 20KM 3G SDI Optic Fiber Transceiver Transmitter and Receiver
Model# FT20
Highlights
* Distance: 20KM
* With 2.6inch LCD Screen
* 3G SDI Signal
* Universal LC fiber interface
Highlights
* Distance: 20KM
* With 2.6inch LCD Screen
* 3G SDI Signal
* Universal LC fiber interface
Product Introduction
This Professional 3G SDI optical transceiver, optical signal transmission system based on broadcast SDI signal design. The device
supports up to 3G SDI signals and is backward compatible with 3G SDI, 1.5G SDI and 270M SDI signals. The device has built-in
signal equalization, serial clock recovery and line drive. The equipment is used in pairs, and the input and output of optical
fiber and SDI can be customized by controlling the DIP switch. The
receiving end supports the conversion of 1 optical signal input into 2 independent SDI signal outputs. The transmitting end
supports one SDI signal input, which is converted into one optical fiber output and one loop-out.The device adopts a detachable
SFP optical module and a single-mode single-fiber design. The standard transmission distance is 20KM. The corresponding modules of
different distances can be arbitrarily changed according to different application scenarios. The device's SDI input signal
frequency is automatically adapted to automatically detect 3G/HD/SD-SDI signals, which can be applied to professional SDI video
signals such as UHDTV/FHDTV/HDTV/SDTV, especially for broadcast-grade
ultra-high definition digital. Long-distance fiber transmission and application of signals. The device is powered by MicroUSB and
can be used in USB device power supply systems.
Product Features
Receiver
◆ 1-CH optical signal input
◆ 2-CH 3G SDI signal output
◆ Universal LC fiber interface
◆Supports up to 3G SDI, backward compatible
◆ Input and output resolution adaptive
◆ Support Micro USB power supply
◆ Single / multimode fiber transmission
◆ Self-adapted 3G and below
◆ Built-in clock recovery function
◇ Special features can be customized
Transmitter
◆ 1-CH 3G SDI signal input
◆ 1-CH 3G SDI signal output
◆ 1-CH serial digital fiber signal output
◆ Universal LC fiber interface
◆ Supports up to 3G SDI, backward compatible
◆ Input and output resolution adaptive
◆ Support Micro USB power supply
◆ Single / multimode fiber transmission
◆ Self-adapted 3G and below
◆ Clock recovery function
◇Special features can be customized
This Professional 3G SDI optical transceiver, optical signal transmission system based on broadcast SDI signal design. The device
supports up to 3G SDI signals and is backward compatible with 3G SDI, 1.5G SDI and 270M SDI signals. The device has built-in
signal equalization, serial clock recovery and line drive. The equipment is used in pairs, and the input and output of optical
fiber and SDI can be customized by controlling the DIP switch. The
receiving end supports the conversion of 1 optical signal input into 2 independent SDI signal outputs. The transmitting end
supports one SDI signal input, which is converted into one optical fiber output and one loop-out.The device adopts a detachable
SFP optical module and a single-mode single-fiber design. The standard transmission distance is 20KM. The corresponding modules of
different distances can be arbitrarily changed according to different application scenarios. The device's SDI input signal
frequency is automatically adapted to automatically detect 3G/HD/SD-SDI signals, which can be applied to professional SDI video
signals such as UHDTV/FHDTV/HDTV/SDTV, especially for broadcast-grade
ultra-high definition digital. Long-distance fiber transmission and application of signals. The device is powered by MicroUSB and
can be used in USB device power supply systems.
Product Features
Receiver
◆ 1-CH optical signal input
◆ 2-CH 3G SDI signal output
◆ Universal LC fiber interface
◆Supports up to 3G SDI, backward compatible
◆ Input and output resolution adaptive
◆ Support Micro USB power supply
◆ Single / multimode fiber transmission
◆ Self-adapted 3G and below
◆ Built-in clock recovery function
◇ Special features can be customized
Transmitter
◆ 1-CH 3G SDI signal input
◆ 1-CH 3G SDI signal output
◆ 1-CH serial digital fiber signal output
◆ Universal LC fiber interface
◆ Supports up to 3G SDI, backward compatible
◆ Input and output resolution adaptive
◆ Support Micro USB power supply
◆ Single / multimode fiber transmission
◆ Self-adapted 3G and below
◆ Clock recovery function
◇Special features can be customized
Unit Size: 107mm*49mm*31.5mm
Unit Weight: 0.2KG
Packing: Brown Box or Color Box
Unit Weight: 0.2KG
Packing: Brown Box or Color Box
Input Signal | 1-CH 3G SDI |
Output Signal | 1-CH 3G SDI signal output, 1-CH serial digital fiber signal output |
DVD Input HDMI Support | 480i/576i, 480p/576p, 720p, 1080i, 1080p |
Fiber Interface | Universal LC fiber interface |
